Fixing a broken neck.

[Thundershot]

Hi folks.
Thanks to the fact that his head had broken off, I bought this for a song @ last months N.E.C. toy fair.


Fortunately it was a clean break & the previous owner had glued it back on using contact adhesive which, despite looking a mess, was easily removed & hadn't harmed the plastic.

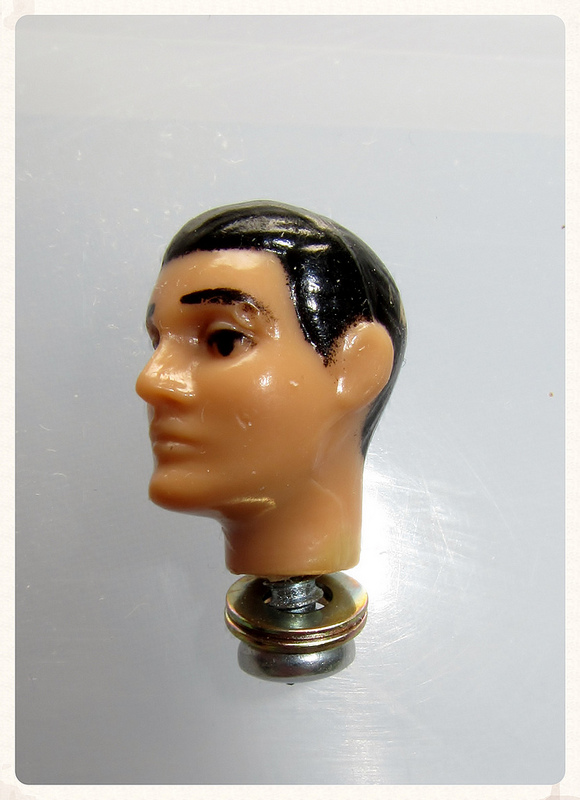

As I've yet to discover a glue that'll work well with this kind of plastic, I figured the best way to reattach it would to be to by using a screw & a couple of washers.

I carefully drilled a hole in the bottom of the neck, starting off with a very fine drill bit & then using progressively larger bits (to not unduly stress & crack the plastic) until the hole was the correct size for the chosen screw.

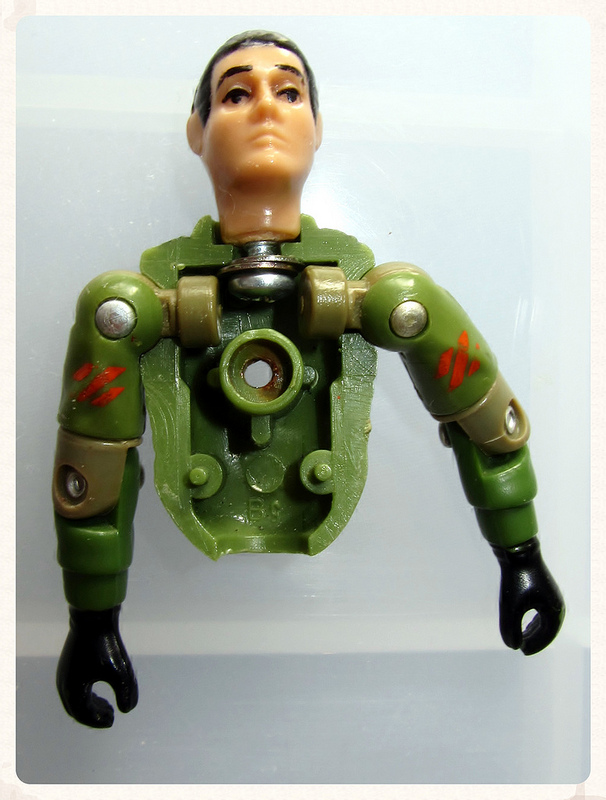

It was then a simple case of checking the tightness so the head wasn't wobbly yet can still freely move.

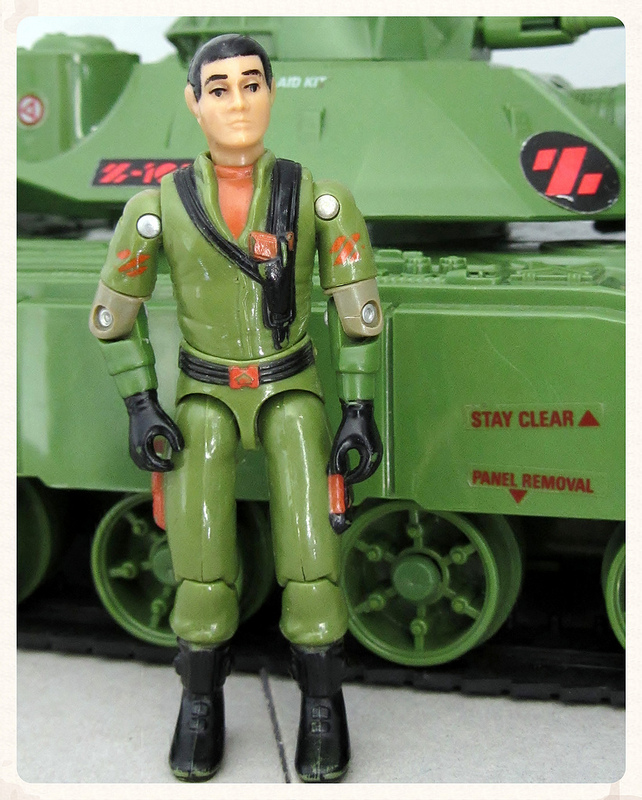

Once the figures re assembled it's impossible to tell it's ever been broken.


Jobs a good un!

This is probably a well known repair method to experienced collectors, but it's the first time I tried it myself & have a very satisfying sense of self achievement in saving a desirable figure for prosperity .

Cheers
T'shot.

[Double-Tap]

Great job!!

[Graham_UK]

Looks good! I have another answer to this problem, it still requires being accurate with a pin vice drill. If you use superglue to tack the neck piece back to the head then use a 1mm drill to drill right through the neck and about 4-5mm into the head, then get a length of carbon fibre rod (really cheap from a model shop) cut it down using a razor saw and again use superglue to fix it all together, the glue will stick like sh*t to a shovel on the carbon rod and the freshly drilled hole. It's a nice trick I learned from my Warhammer days, it's basically pinning but with a carbon rod

It's interesting as I've also found it hard to make an old break stick, new breaks seem to adhere much better!

[The Black Major]

Brilliant idea and top job. Looks like it's never happened!

[Chopper]

Exactly how I do it, though I use PC case screws as they are bang on the right size. Same technique can be used for palitoy figures.

[wolforrest]

Must admit that Im too lazy and just stick a ball shaped piece of blue tack on.
Your technique is spot on though.

[Lady Jaye]

Excellent fix Ed!

[SteveD]

Agreed! Really nice tip!

I've found that if dremmelling these heads they tend to get more rubbery the hotter they get, so that's best avoided!

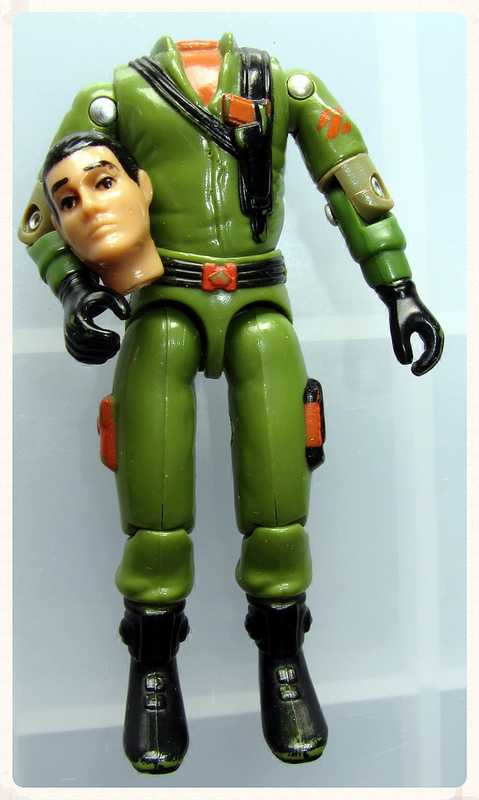

I also chuckled at the pic of him holding his head! It's the "Sleepy Hollow" variant of Steeler!!!

[Thundershot]

Cheers guys

Exactly how I do it

Great minds think alike

Hi Graham, I've not heard of that technique before.. using carbon fibre sounds very'Six Million Dollar Man'

[SteveD]

using carbon fibre sounds very'Six Million Dollar Man'

We can rebuild you. We have the technology.
